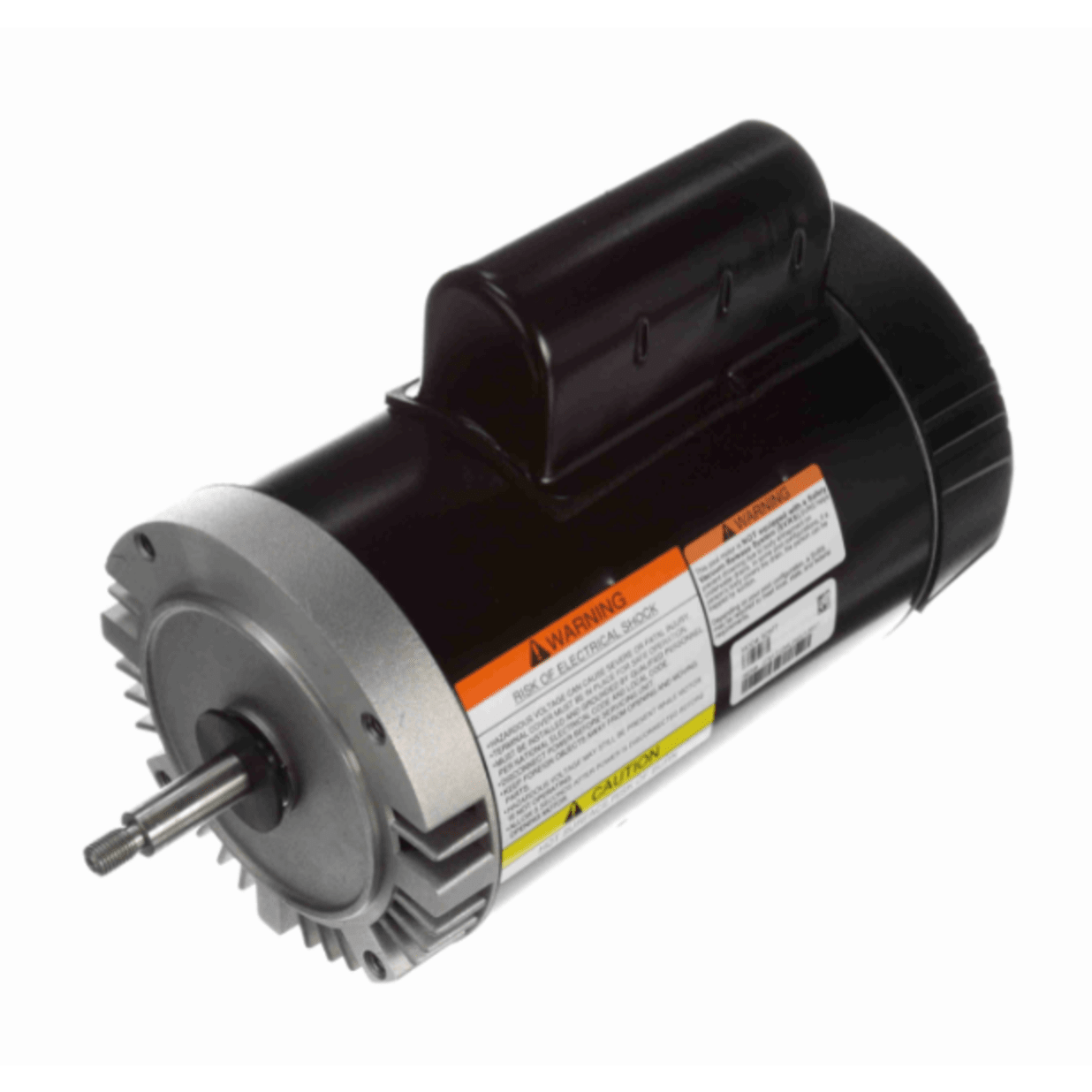

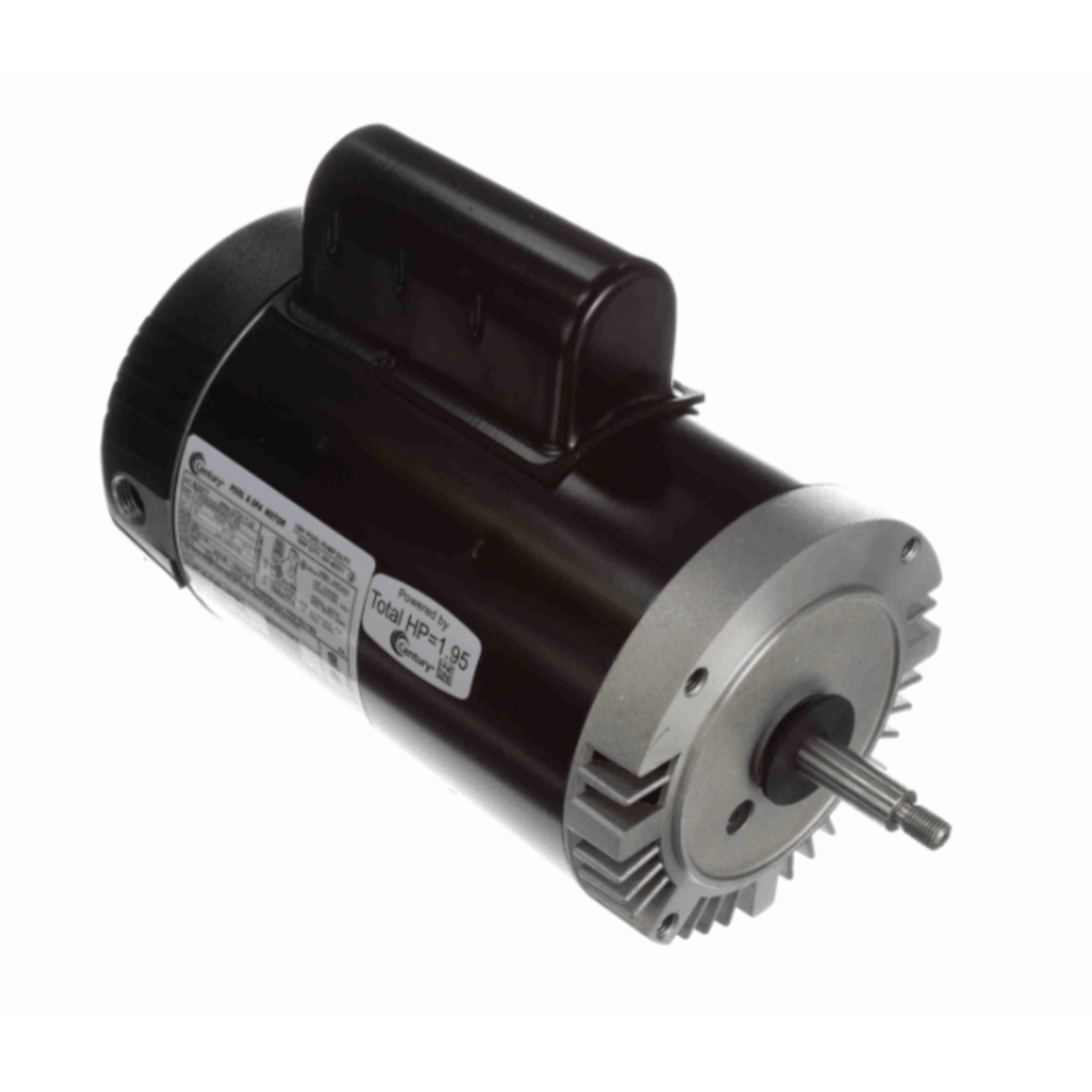

Century Motor 2.5 HP, 56J Frame 2-Speed
Century B2977
B2977 Century C-Face Motor; 230 V; 8.9/3.1 A; 2.5 hp; 56J Frame; 1-Phase; 2-Speed; 60 Hz
Used with: Hayward NorthStar after 2008, Jandy JHP & JHPU, HHP, HHPU, Jacuzzi Magnum Plus
Key Features:
Sealed Ball Bearings
Two Speed
Energy Efficient
Permanent Split Capacitor
UL 1081 Design
High Speed Switchless
Low Speed Microswitch
Threaded Shaft
303 Stainless Steel Shaft
Note: Not California Title 20 Compliant
Frequently Purchased Together
Product Overview

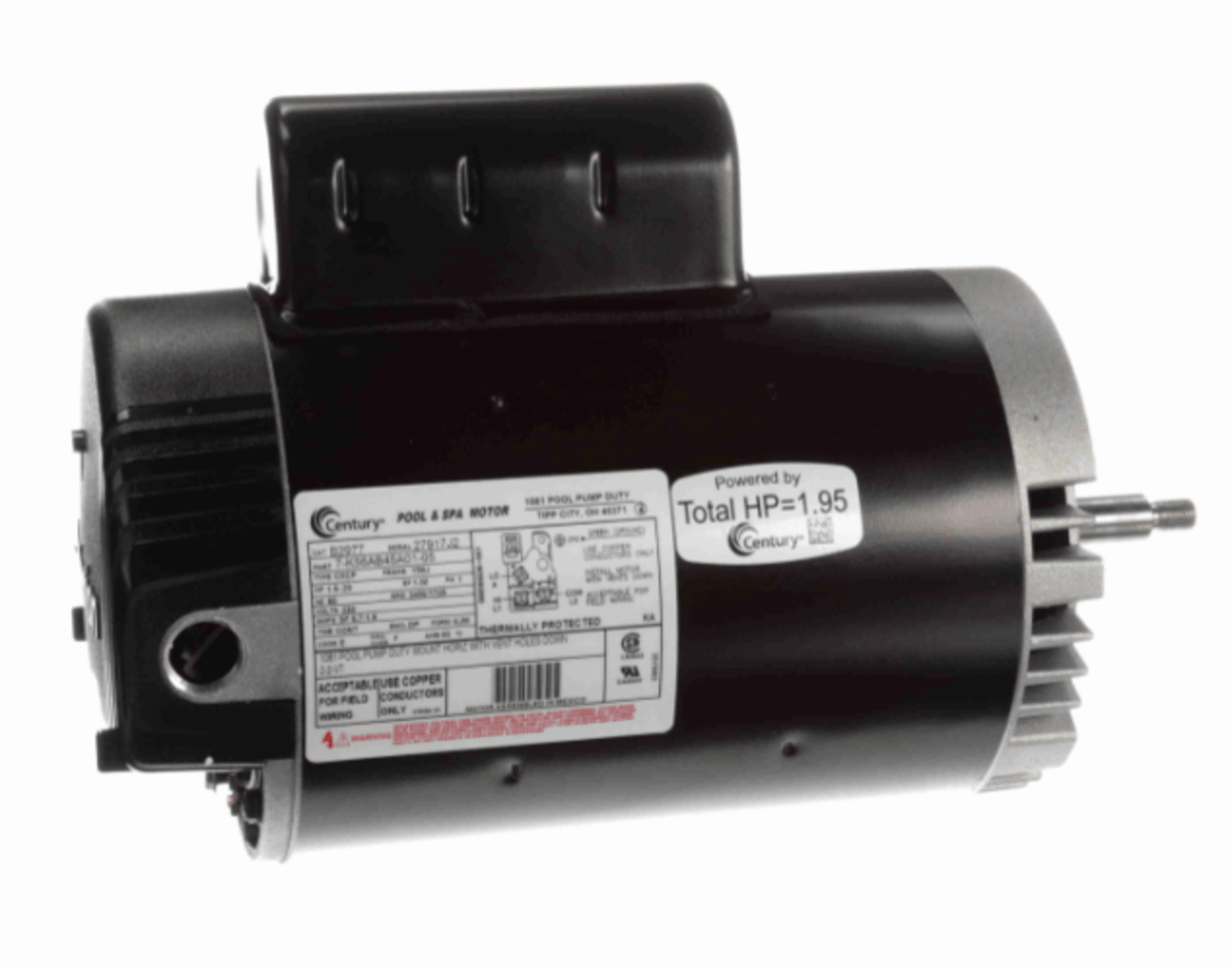

Side view
Nameplate Specs:
Phase: 1
Output HP: 1.5-.20 Hp
Output KW: 1.1 kW
Voltage: 230 V
Speed: 3450/1725 rpm
Service Factor: 1.3
Frame: Y56J
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: SF 8.7-1.9 A
Duty: Continuous
Insulation Class: F
UL: Recognized
CSA: Y
Number of Speeds: 2-2-VT
Technical Specs:
Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed
Poles: 2/4
Rotation: Clockwise
Mounting: Round
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 7/16 Threaded
Overall Length: 13.05 in
Frame Length: 8.00 in
Shaft Diameter: 0.625 in
Shaft Extension: 2.57 in
Top view
California Title 20 Compliant Options
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Specs & Details
| Product Name | Motor 2.5 HP, 56J Frame 2-Speed |
| Manufacturer Part Number | B2977 |
| Sku | MGT-60-2977 |
| UPC | 786674069627 |
