Why Variable Speed?

The new VGreen Evo motor is driven by advanced variable speed technology to power the most energy efficient and compliant pool pumps in the industry, helping our customers meet or exceed latest DOE regulations.
Single-speed pumps typically run at high RPM’s around the clock, over-circulating water and wasting precious energy and money. A variable speed pump motor allows users to circulate water at the minimum turnover rate for water quality at a lower RPM, thereby greatly reducing the energy needed to run the pump. The slower circulation rates of a variable speed pump equate to a noticeably quieter motor. Operating at lower speeds also lowers the temperature of the motor, extending the life of the motor. Upgrading to a variable speed motor will lower the cost of pool ownership through energy savings without replacing the pump. These motors run cooler, quieter and last longer. Owning a pool with a variable speed motor is more affordable and better for the environment.

Replacement Versatility

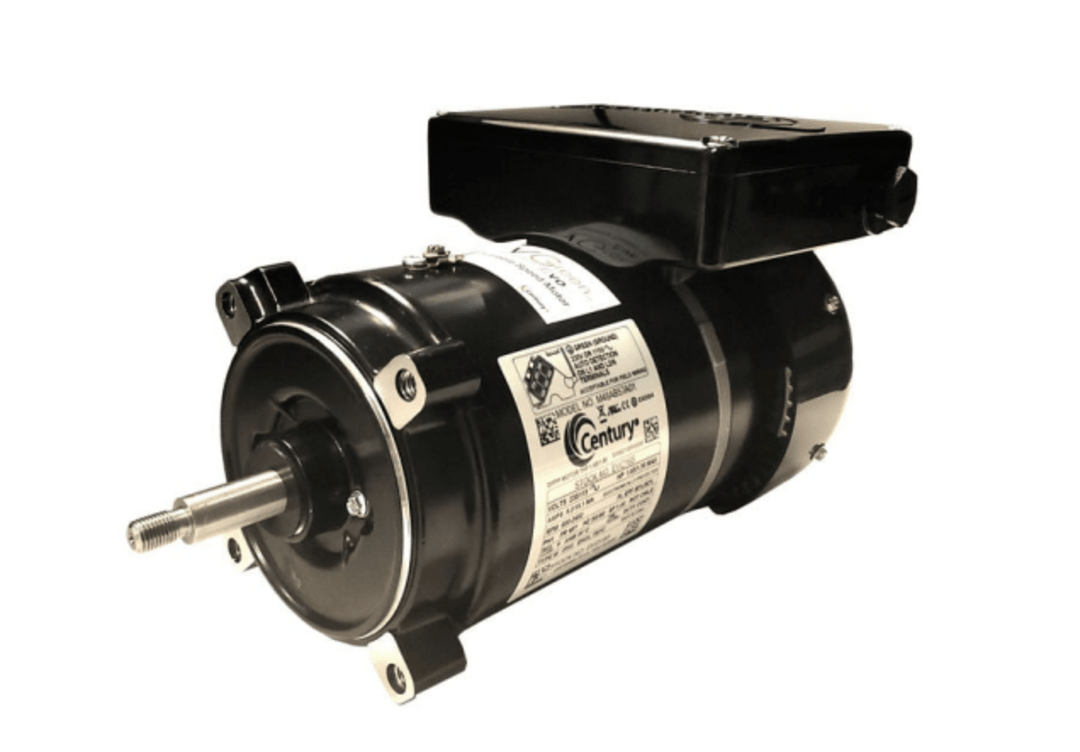

Available in both square flange and C-Face configurations, the highly versatile VGreen Evo motor can be utilized in pool pump applications ranging from 1.30 to 2.25 total horsepower. Installation on most pumps, regardless of manufacturer, is as simple as replacing a standard single-speed or two-speed motor. There is no additional wiring or plumbing required, thanks to the VGreen Evo motor’s integrated user interface.

Simplified User Interface

The VGreen Evo motor features a simplified user interface to allow for programming flexibility with the push of a single button. The motor offers various pre-programmed variable speed operating schedules, allowing users to best optimize their motor to minimize energy consumption and lower the overall cost of pool ownership, all while maintaining the proper pool environment.

Nameplate Specs:

• Phase: 1

• Output HP: 2.25/1.50 Hp

• Output KW: 1.7 kW

• Voltage: 230/115 V

• Speed: 600-3450 rpm

• Service Factor: 1

• Frame: 56J

• Enclosure: Totally Enclosed Fan Cooled

• Thermal Protection: Automatic

• Ambient Temperature: 50 °C

• Frequency: 50 Hz

• Current: 13.5/17.4 MAX A

• Duty: Continuous

• Insulation Class: F

• UL: Recognized

• CSA: N

• CE: Y

• Number of Speeds: VAR

Technical Specs:

• Rotation: Clockwise Lead End

• Mounting: Round

• Drive End Bearing: Ball

• Opp Drive End Bearing: Ball

• Frame Material: Rolled Steel

• Shaft Type: Threaded

• Frame Length: 8.68"

• Shaft Diameter: 0.625"

• Shaft Extension: 7/16-20" THREAD
