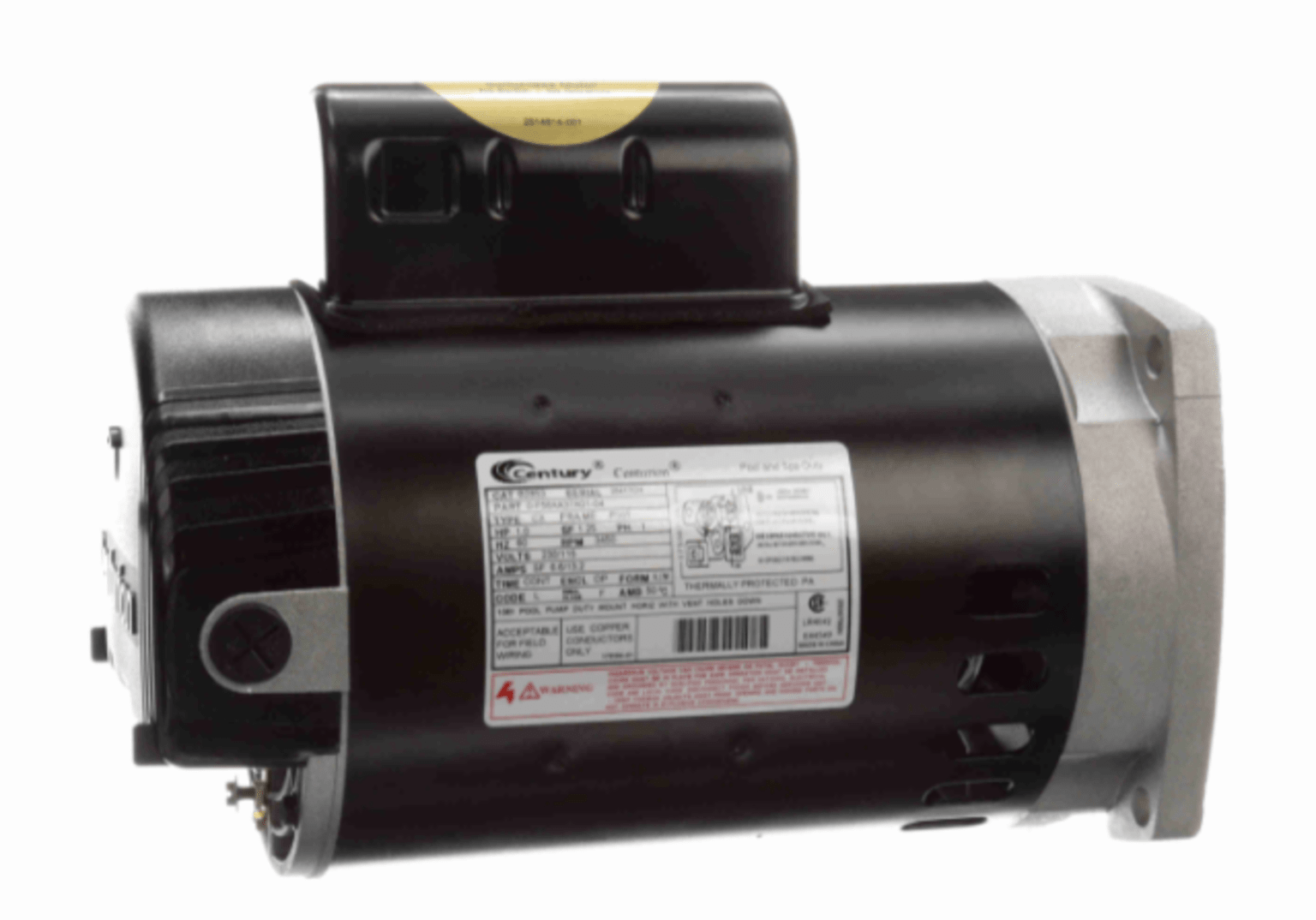

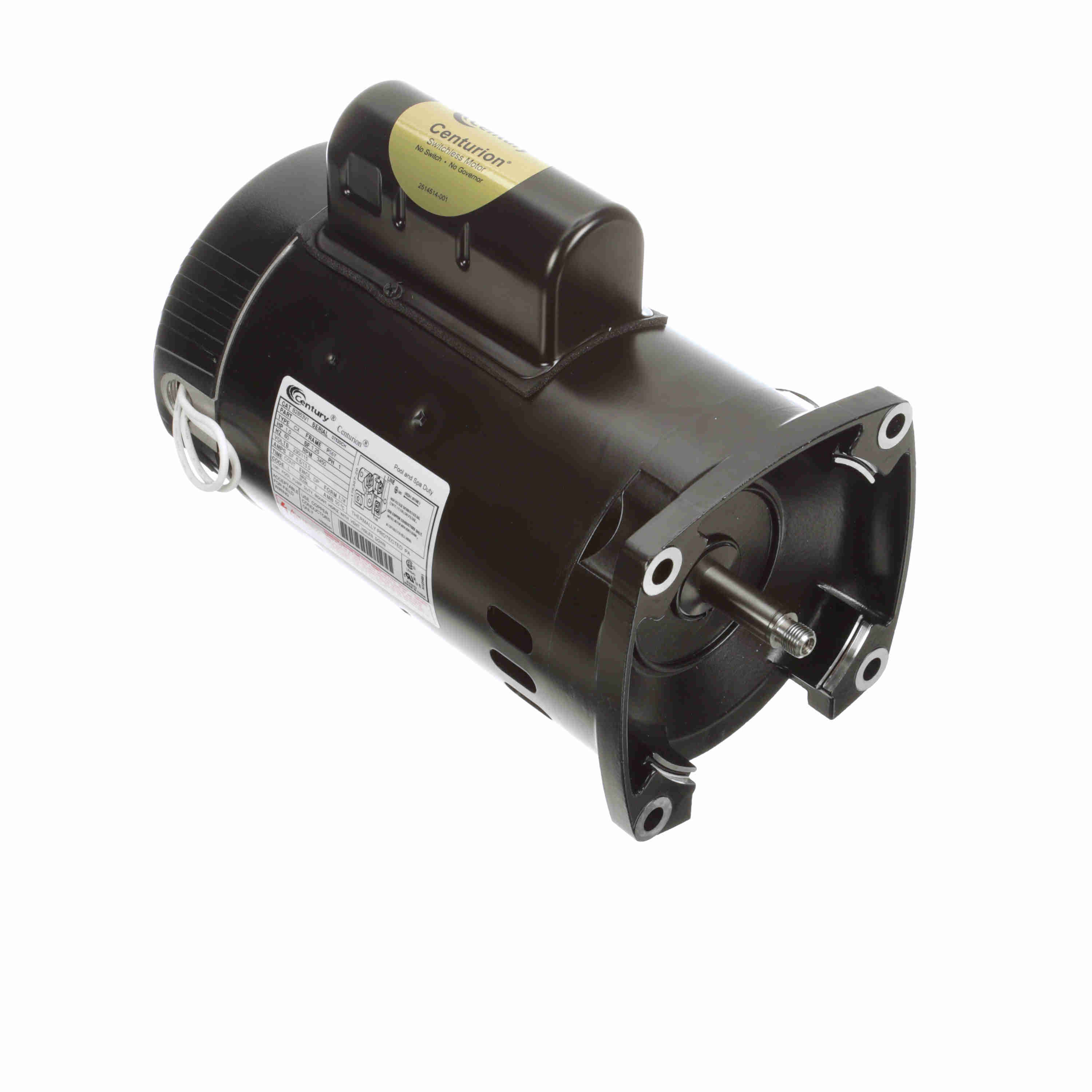

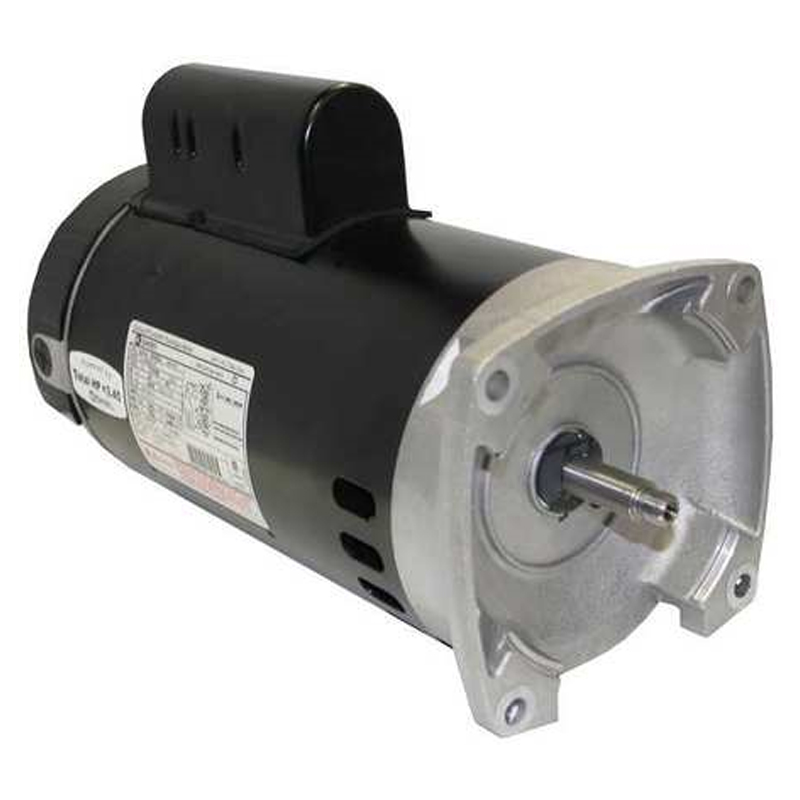

Century Motor, Up Rated, 1 HP, 115/230v
Century B2853
Starting at $ /mo with Affirm. Prequalify now
Motor, Up Rated, 1 HP, 1.25 SF, 115/230v (B853) now (B2853)
Key Features:
Sealed Ball Bearings
50°C Ambient
Stainless Steel Shaft
Switchless
UL 1081 Design
Open Dripproof
Threaded Shaft
Permanent Split Capacitor
Note: NOT California Title 20 Compliant.
Frequently Purchased Together
Product Overview
Nameplate Specs:
Phase:1
Output HP: 1 Hp
Output KW: 0.75 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1.25
Frame: P56Y
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature:50 °C
Frequency: 60 Hz
Current: SF 6.6/13.2 A
Duty: Continuous
Insulation Class: F
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specs:
Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
Poles:2
Rotation: Counterclockwise Pump End
Mounting: Round
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 1/2" Thread
Overall Length: 12.40"
Frame Length: 8.00"
Shaft Diameter: 0.625"
Shaft Extension: 0.91"
California Title 20 Compliant Options
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Specs & Details
| Product Name | Motor, Up Rated, 1 HP, 115/230v |
| Manufacturer Part Number | B2853 |
| Sku | MGT-60-2853 |
| UPC | 786674013224 |
