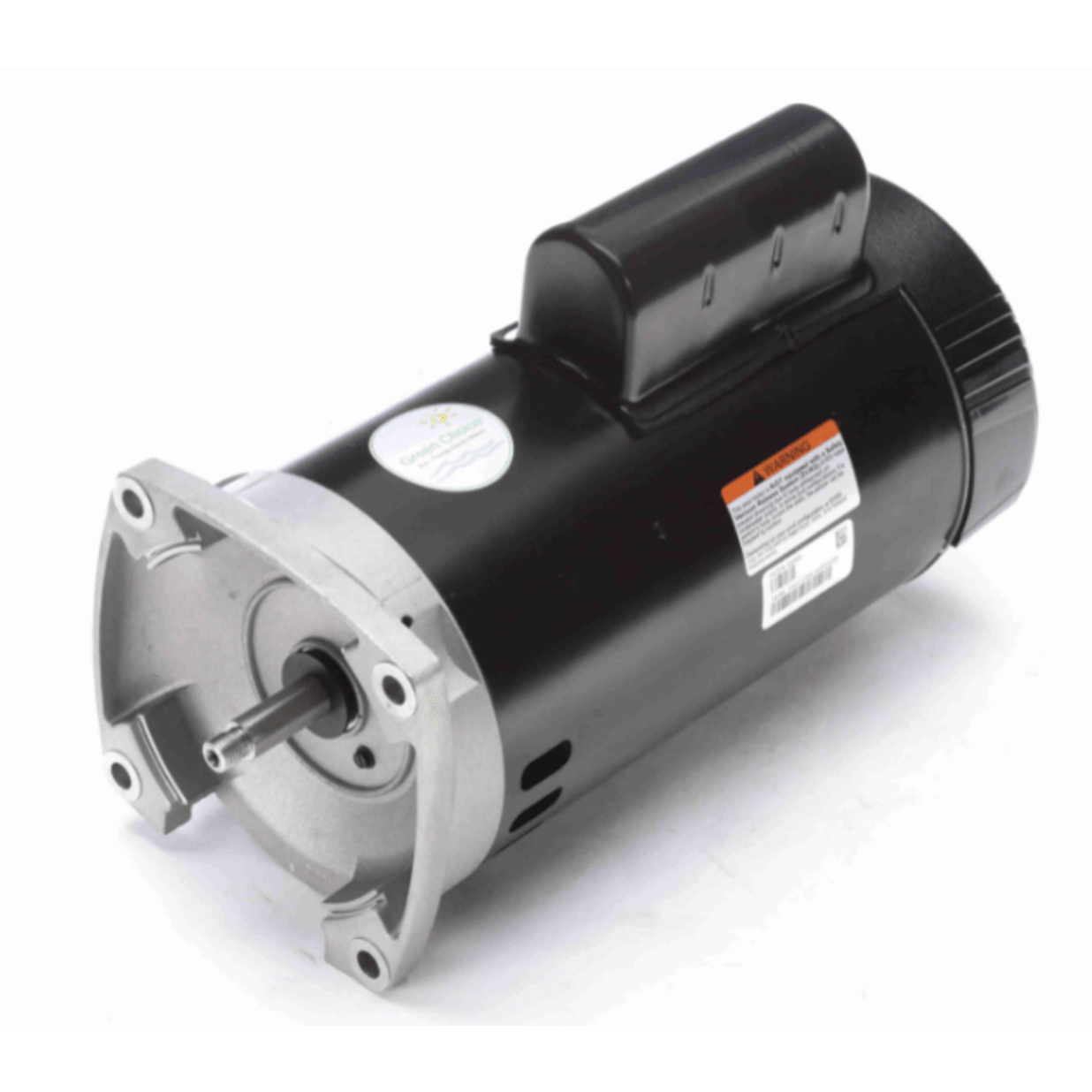

Century Motor, Full-Rated, Two-Speed, 2.0 HP 1.3 SF 230v (B2984)
Century B2984
Motor, Full-Rated, Two-Speed, 2.0 HP 1.3 SF 230v (B2984)
Used with: Pentair Challenger, Pentair whisperflo, Hayward Tristar, Jandy PHPF/PHPM
Key Features:
Two Speed
Sealed Ball Bearings
50°C Ambient
Energy Efficient High and Low Speed
Open Dripproof
Permanent Split Capacitor on High Speed
Cap Star/Cap Run Low Speed
303 Stainless Steel Shaft
Threaded Shaft
Note: NOT California Title 20 Compliant.
Frequently Purchased Together
Product Overview

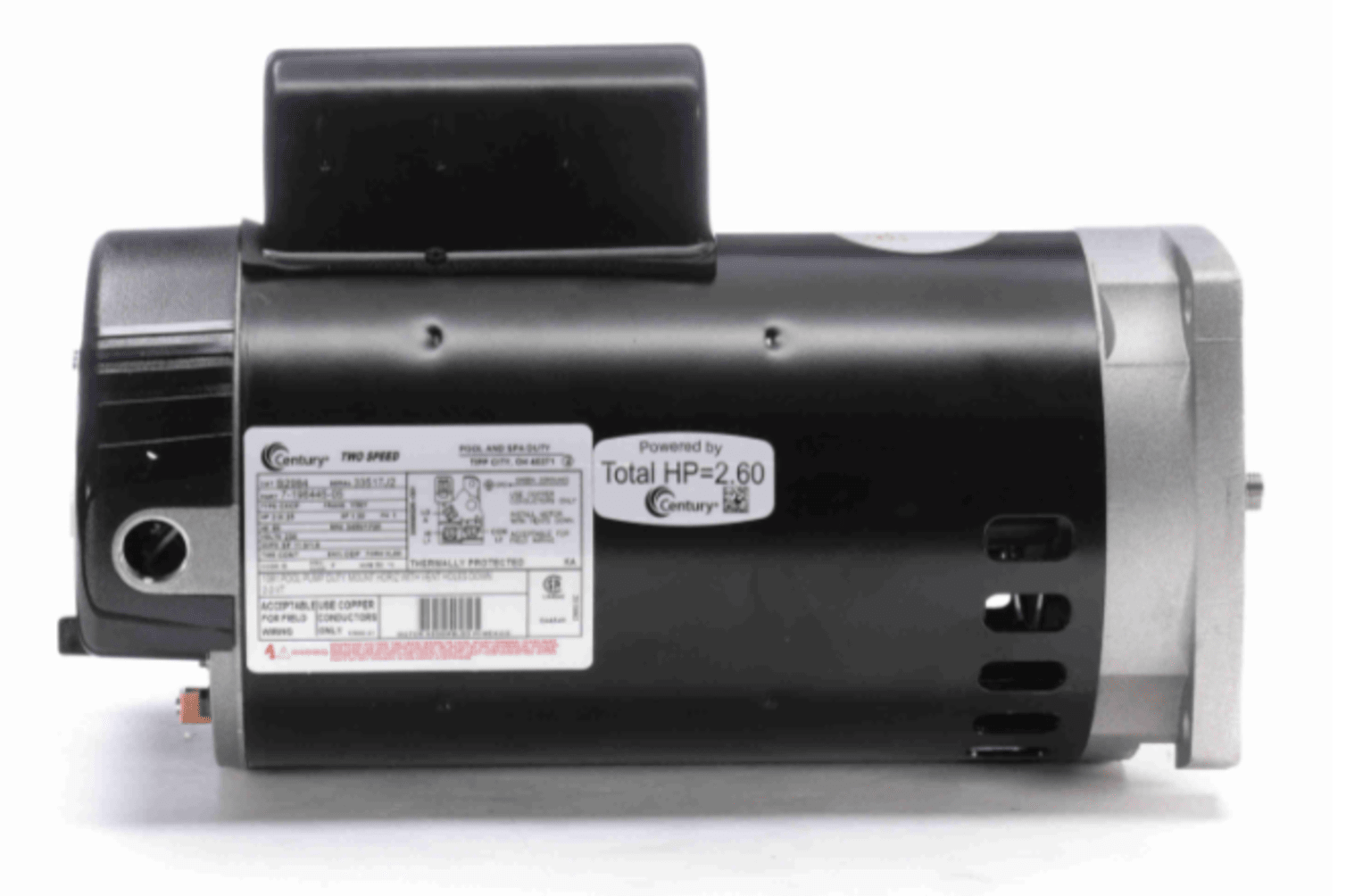

Side view
Nameplate Specs:
Phase: 1
Output HP: 2.0/.25 Hp
Output KW: 1.5 kW
Voltage: 230 V
Speed: 3450/1725 rpm
Service Factor: 1.3
Frame: Y56Y
Enclosure: Open Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: SF 11.0/1.8 A
Duty: Continuous
Insulation Class: F
UL: Recognized
CSA: Y
Technical Specs:
Electrical Type: Psc Low Speed, Cap Start/Cap Run High Speed
Poles: 2/4
Rotation: Counterclockwise Pump End
Mounting: Square Flange
Motor Orientation: Horizontal
Drive End Bearing: BALL
Opp Drive End Bearing: BALL
Frame Material: Rolled Steel
Shaft Type: 1/2" THREADS
Overall Length: 14.40"
Frame Length: 10.00"
Shaft Diameter: 0.625"
Shaft Extension: 0.91"

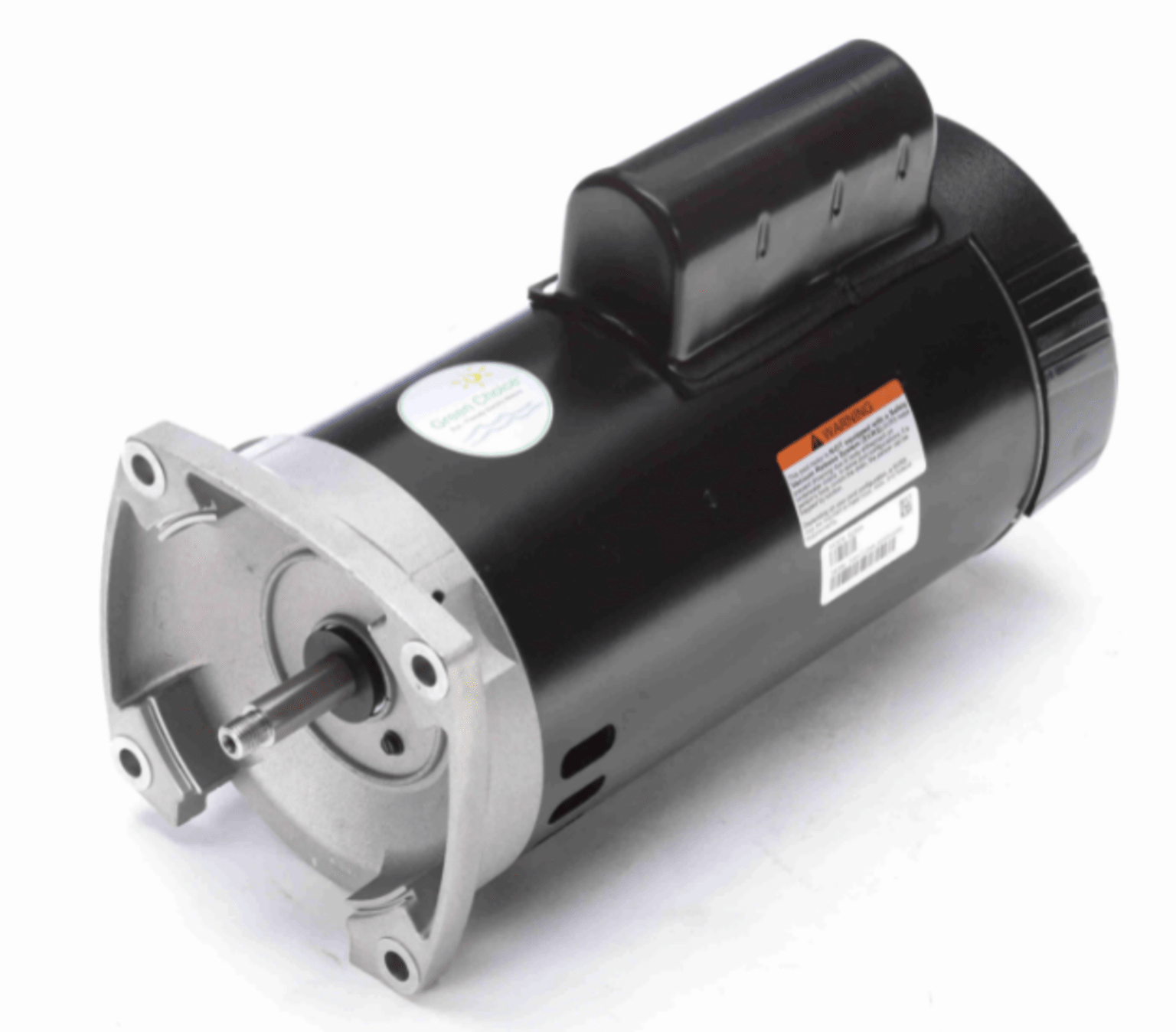

Front view
California Title 20 Compliant Options
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Specs & Details
| Product Name | Motor, Full-Rated, Two-Speed, 2.0 HP 1.3 SF 230v (B2984) |
| Manufacturer Part Number | B2984 |
| Sku | MGT-60-2984 |
| UPC | 786674012364 |
