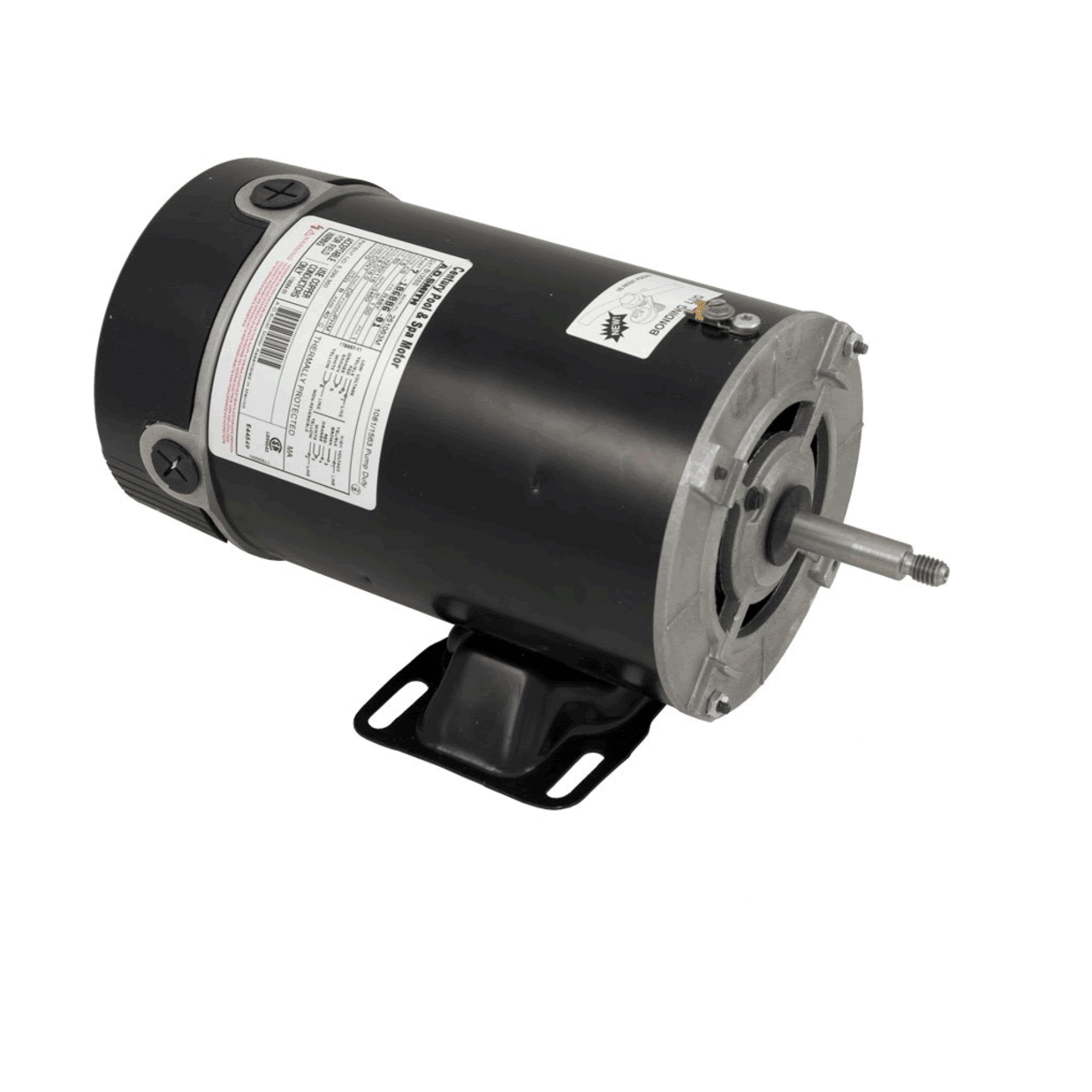

Century Motor, 1.5HP, 115/230V, 48Y Frame (SS)
Century BN35V1
A.O. Smith Corp/ Regal Beloit Replacement 1-1/2 Horsepower 48Y Frame Thru Bolt Style Motor with Stainless Steel Shaft. 115/230v. Many above ground pool & spa pumps use this motor. Used with: Hayward Power-Flo LX1580, Power-Flo II, Pentair Dynamo, Waterway Hi-Flo & HI-Flo II Side Discharge.
Key Features:
12 & 3 O'clock Conduit Entries
3-1/2" Shaft Height
40°C Ambient
Stainless Steel Shaft
Four Thru Bolts on a 5.146 Bolt Circle
48/56 Base Mounting
Sealed Ball Bearings
UL 1081 Design
Rigid Base
Threaded Shaft
Note: NOT California Title 20 Compliant.
Frequently Purchased Together
Product Overview
Top view

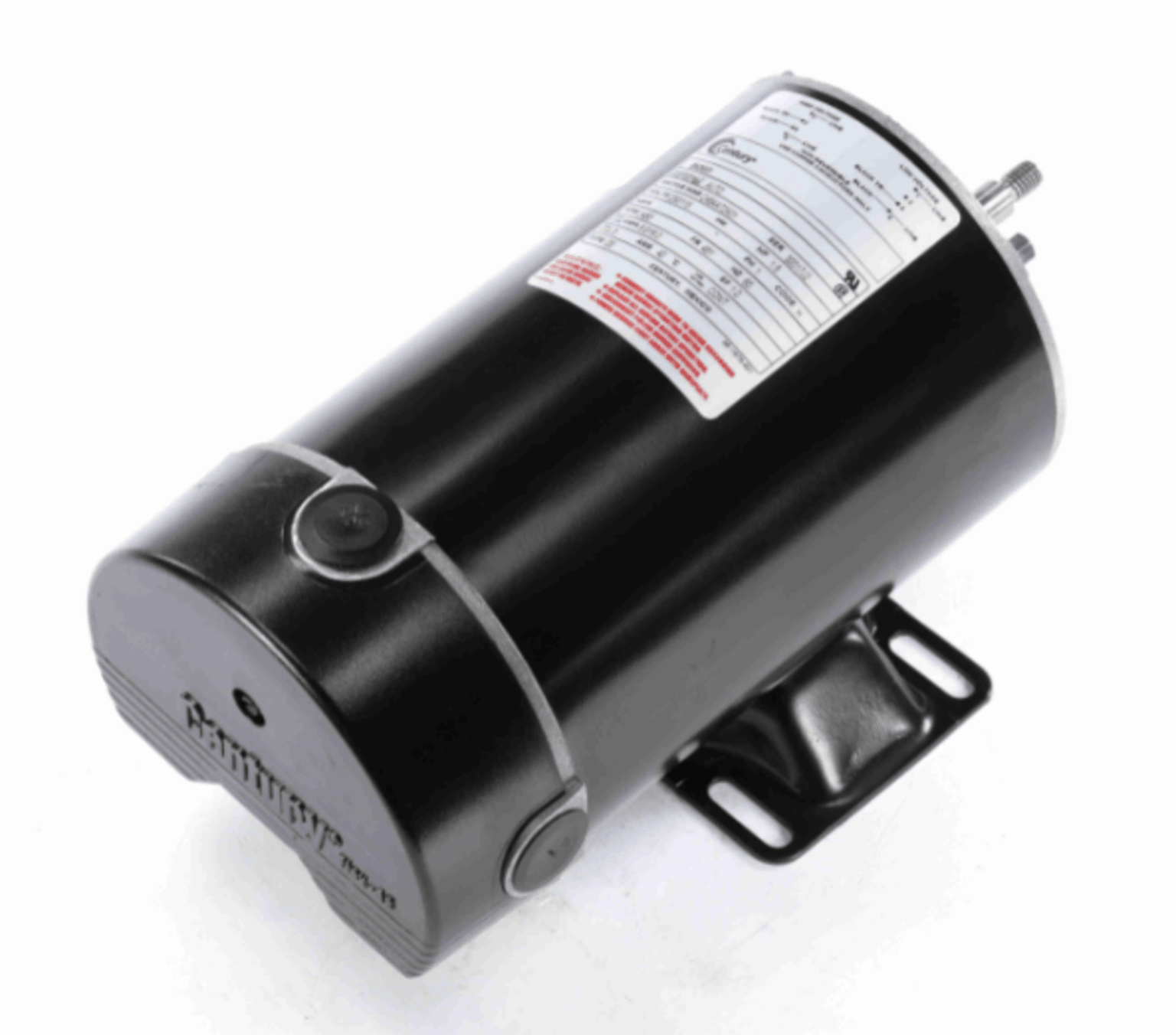

Century BN35V1 Nameplate Specs:
Phase: 1
Output HP: 1.5 Hp
Output KW: 1.1 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1
Frame: 48Y
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 Hz
Current: 8.0/16.0 A
Duty: Continuous
Insulation Class: B
UL: Recognized
CSA: Y
Technical Specs:
Electrical Type: Capacitor Start, Induction Run, Single Or Dual Voltage
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: Thru Bolt
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 3/8" Threaded
Overall Length: 12.08"
Frame Length: 7.50"
Shaft Diameter: 0.500"
Shaft Extension: 2.375"

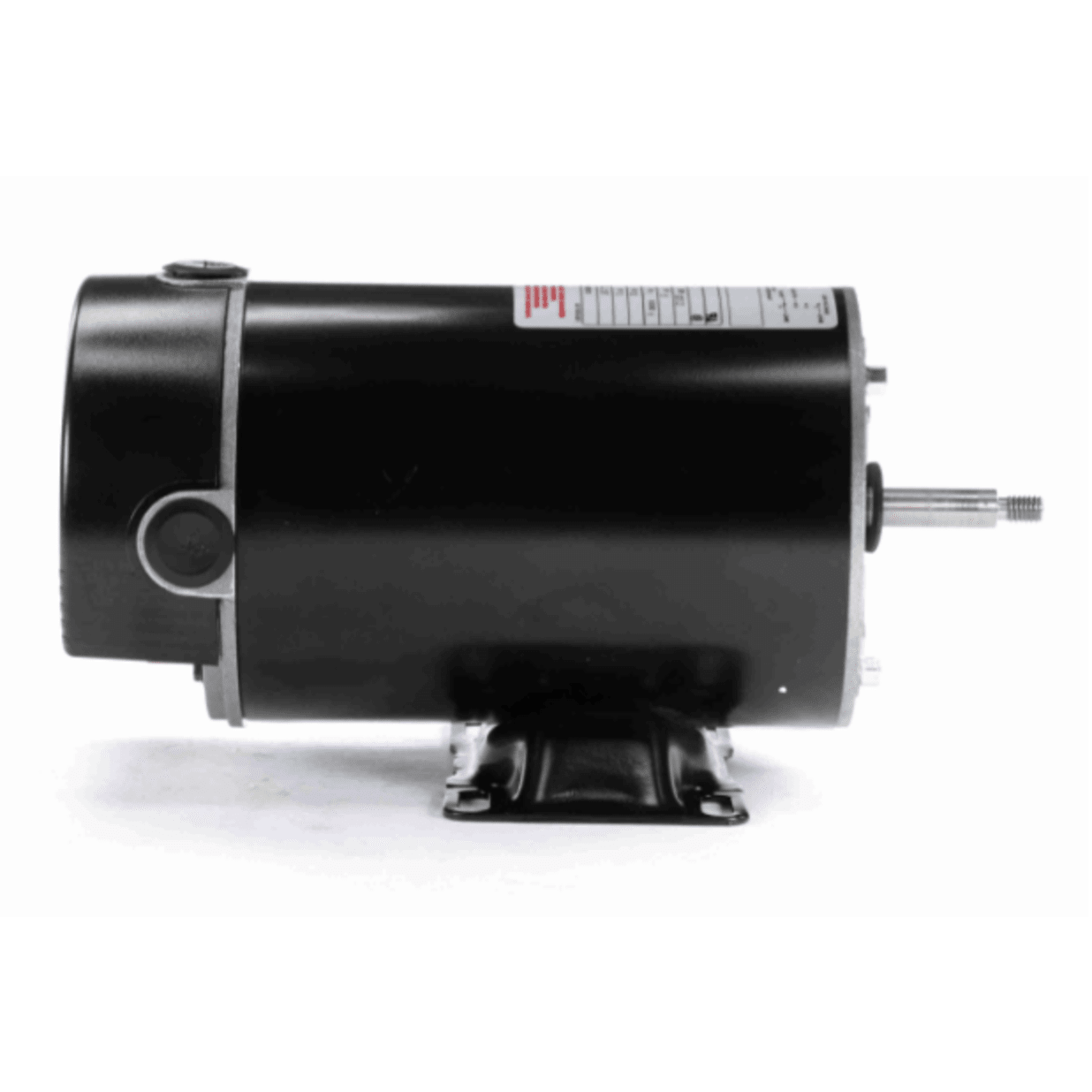

Side view
Specs & Details
| Product Name | Motor, 1.5HP, 115/230V, 48Y Frame (SS) |
| Manufacturer Part Number | BN35V1 |
| Sku | MGT-60-0035 |
| UPC | 786674014382 |
