Intermatic 100 Amp Load Center With 8-Breaker Spaces and 300W Transformer
Intermatic P40000RT3
Intermatic's P40000RT3 next generation 100 Amp pool load center was designed for basic pool applications with variable speed pumps and a 300 Watt transformer for submersible and/or landscape lighting.

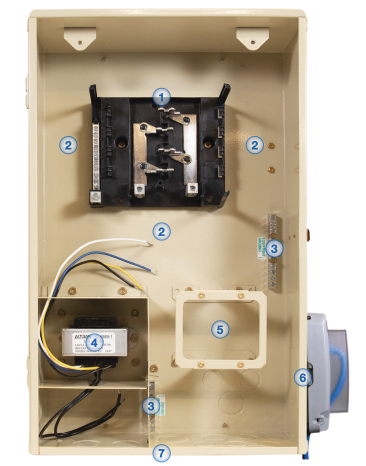

Product Overview
1. Built-in 8-pole breaker base - Suitable for many brands & types of circuit breakers
2. Additional wiring space
3. Ground bars - Provided for low voltage and line voltage

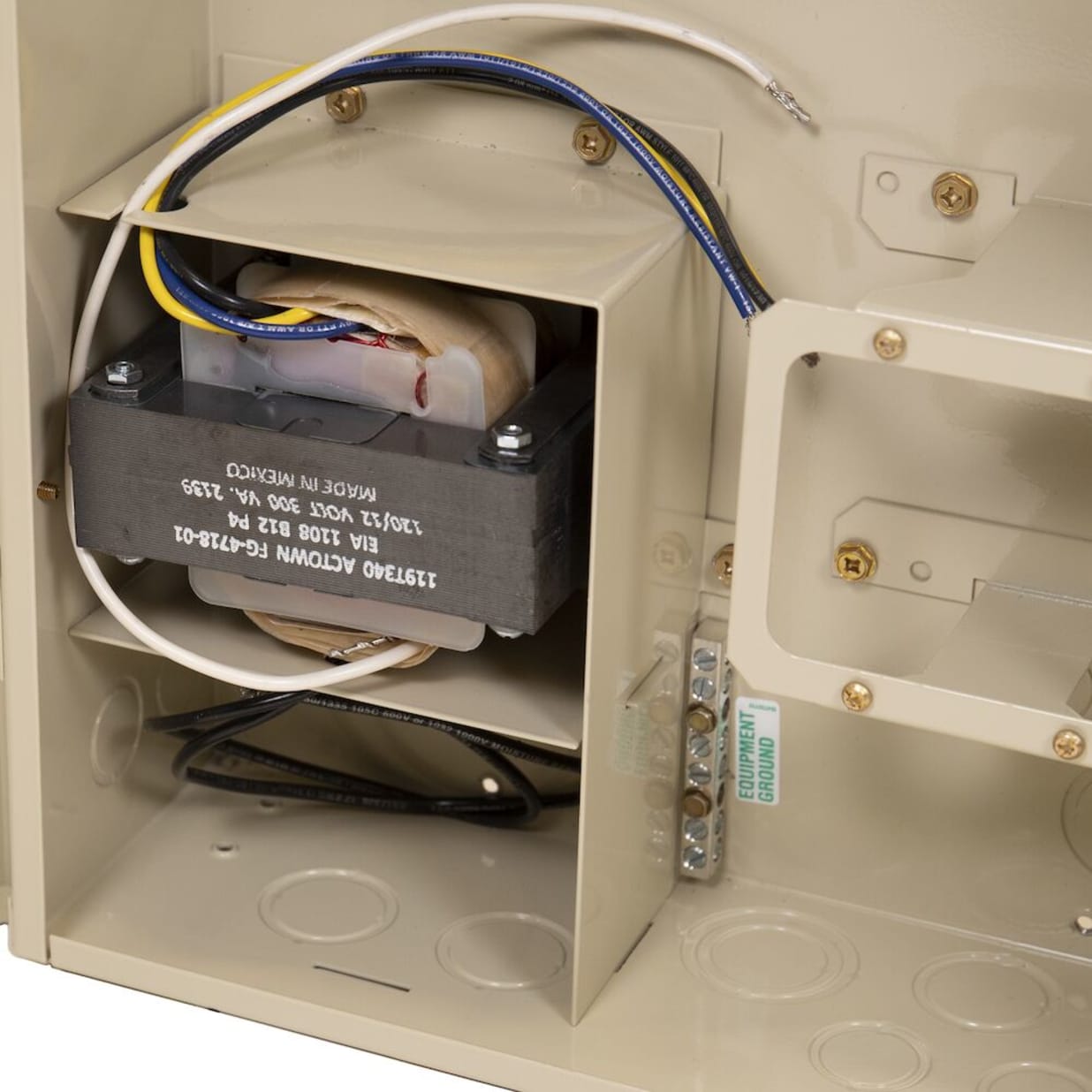

4. Quiet transformer and enclosure - Newly designed panel with extended transformer cover minimizes audible noise (Built-in transformer eliminates the need to install a separate standalone transformer)
5. Built-in Brackets for Wiring Devices - need for separate stand-offs not required
6. Side Knockout Adjustment - Exterior GFCI knock-out moved to accomodate Intermatic extra duty waterproof covers (WP5000 / WP7000 series)
7. Bottom Knockout Adjustment - Larger diameters on both the low and high voltage knockouts
Specs & Details
| Product Name | 100 Amp Load Center With 8-Breaker Spaces and 300W Transformer |
| Manufacturer Part Number | P40000RT3 |
| Sku | INT-30-1333 |
| UPC | 078275152731 |
- Intermatic P40000 Series Installation Instructions|
