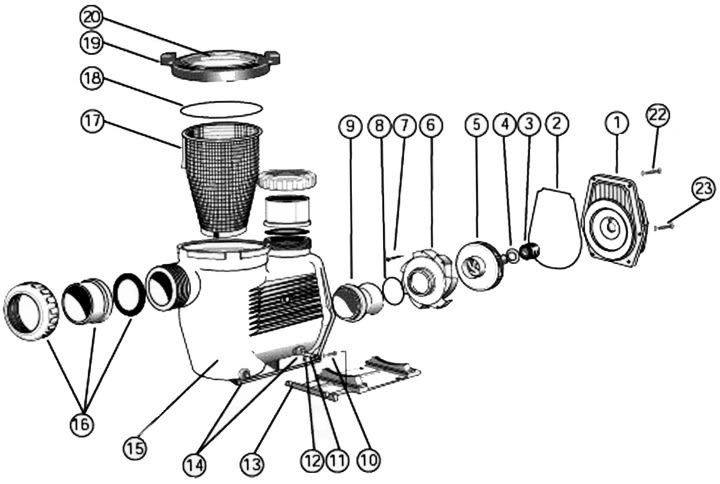

Hydrostar Pump Parts Diagram

Pump Housing Drain Plug
$4.22
14
Waterco 3" Half Union Assembly BAK-101-634080
$32.50
16
Basket OEM Waterco Hydrostar
$38.90
17
Waterco O-Ring, Pump Body BAK-101-634070
$25.60
2
Waterco Fiber Washer
$3.51
4
Waterco Impeller, 4 HP
$40.26
5
Waterco Impeller, 5 HP
$40.26
5
Waterco Impeller, 7 HP
$40.26
5
Waterco Suction Nozzle BAK-101-634064
$18.73
9
Pump Foot Bolt
$3.34
10
Waterco Pump Foot Washer
$3.24
11
Waterco Pump Foot Nut
$3.24
12
Pump Face H/L Pot Body 3
$247.38
15
Waterco O-Ring, H/L Pot Lid
$11.19
18
Waterco H/L Pot Lock Ring
$52.22
19
Waterco H/L Pot Lid
$28.92
20
HydroStorm Bracket Bolt
$4.24
20
HydroStorm Motor Bolt
$4.24
20
