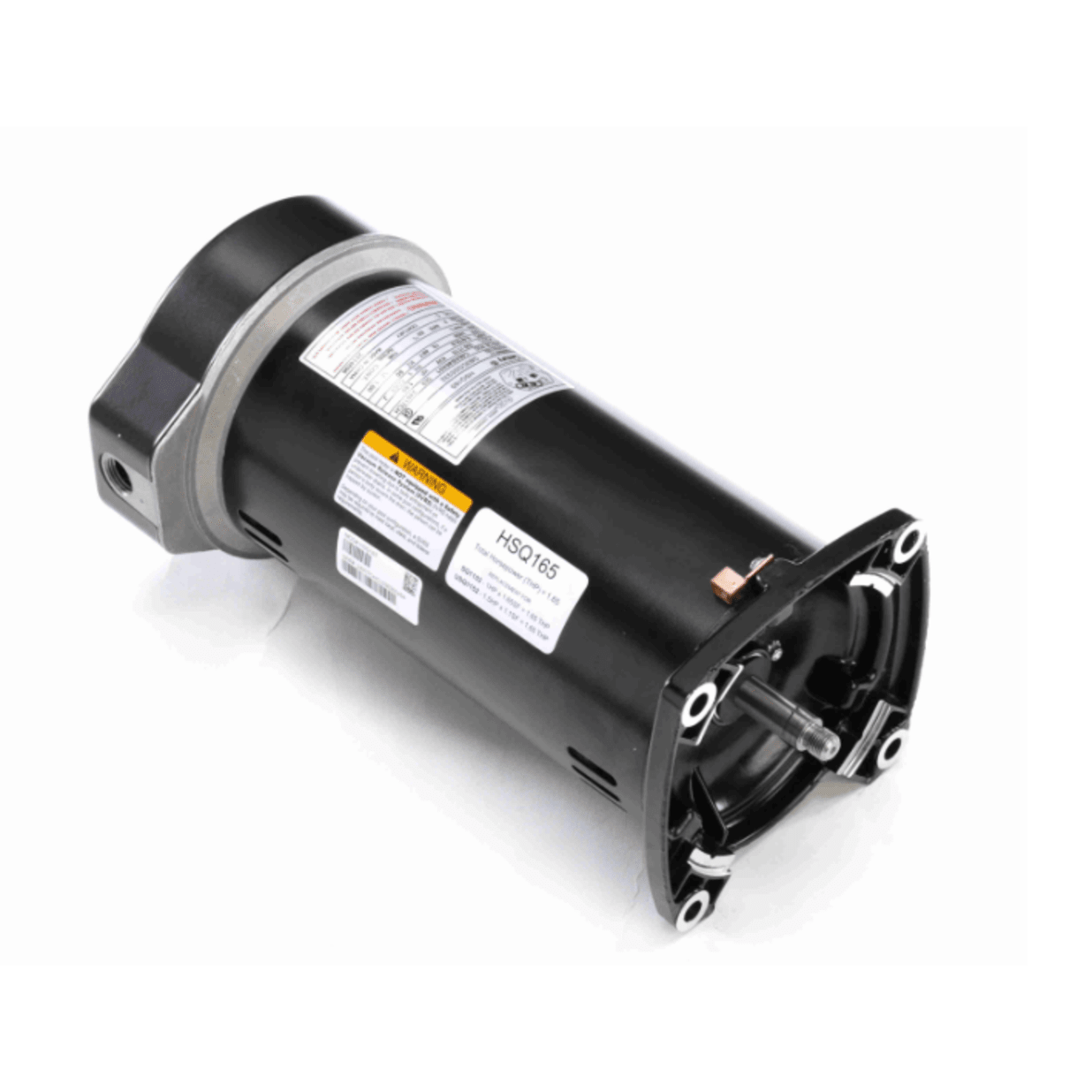

Century 1.65HP Square Flange Pool And Spa Pump Motor; 3450 Rpm 48Y; Threaded Shaft
Century HSQ165
Starting at $ /mo with Affirm. Prequalify now
Century Centurion Pro HSQ165 Pool and Spa Pump Motor; 1.65 THP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, Square Flange
Premium Sealed 203 Bearings on Both Ends
Open & Accessible Terminal Board & Wiring Compartment For Easy Installation
New Triple Seal Protection on Pump-End Bearing
Voltage Change Device
Definitive Shaft Access (7/16" Wrench)
UL 1081 Design
50°C Ambient
303 Stainless Steel Shaft
Not California Title 20 Compliant
Product Overview
Nameplate Specifications
Phase:1
Output HP: 1.65 Hp
Output KW: 1.2 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1
Frame: 48Y
Enclosure: Open Drip Proof
Thermal Protection: Automatic
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: 9.4/18.8 A
Duty: Continuous
Insulation Class: F
UL: Recognized
CSA: Y
Number of Speeds: 1
Technical Specifications
Electrical Type: Capacitor Start Induction Run
Starting Method: Across The Line
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: Round
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 1/2 Thread
Overall Length: 14.12 in
Frame Length: 10.13 in
Shaft Diameter: 0.625 in
Shaft Extension: 0.906 in
California Title 20 Compliant Options
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards:V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Specs & Details
| Product Name | 1.65HP Square Flange Pool And Spa Pump Motor; 3450 Rpm 48Y; Threaded Shaft |
| Manufacturer Part Number | HSQ165 |
| Sku | AOS-60-2723 |
| UPC | 786674069764 |
