Century 1-1/2 HP, 3450 RPM, 8.0/16.0 Amps, 1.1 Service Factor, 56Y Frame, PSC, ODP Enclosure, Square Flange Pool Pump Motor
Century B2854V1
Upgrade your pool's performance with the Century 1.5 HP Pool Pump Motor. This powerful motor boasts 3450 RPM, 8.0/16.0 Amps, and a 1.1 service factor, ensuring efficient and reliable operation. Designed with a 56Y frame, square flange, and a sturdy ODP enclosure, it's built to last. Plus, it's a perfect fit for the Pentair WhisperFlo & Challenger Pool Pumps, guaranteeing a seamless replacement process and clear, refreshing water for your pool.
Features:
1-1/2 HP
230/115 volts
3450 RPM
Used On Sta-Rite Max-E-Pro, Pentair Whisperflo, Challenger, & Pinnacle Pumps
B2854V1 replaces old Century stock, B854, B2854v
Note: NOT California Title 20 Compliant.
Frequently Purchased Together
Product Overview
Nameplate Specifications
Phase: 1
Output HP:1.5 Hp
Output KW:1.1 kW
Voltage:115/230 V
Speed:3450 rpm
Service Factor:1.1
Frame:Y56Y
Enclosure:Drip Proof
Thermal Protection:Thermally Protected
Ambient Temperature:50 °C
Frequency:60 Hz
Current:SF 16.0/8.0 A
Duty:Continuous
Insulation Class:F
UL:Recognized
CSA:Y
Number of Speeds:1

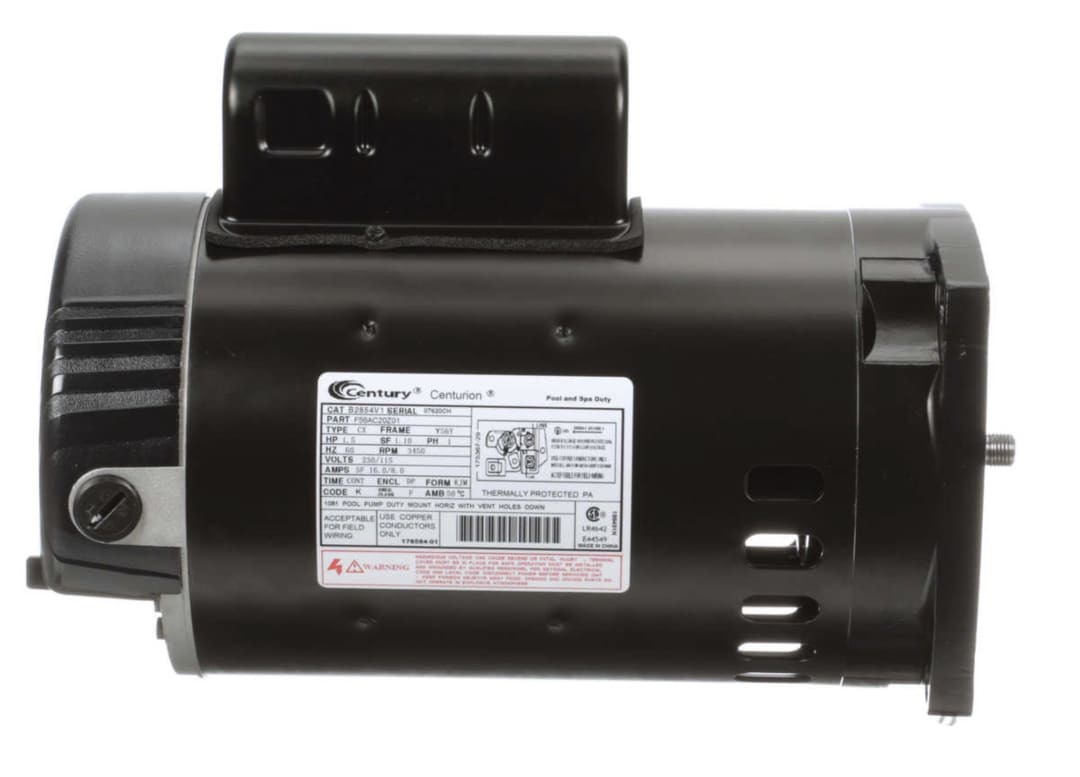

Side View
Technical Specifications
Electrical Type:Permanent Split Capacitor, Single Or Dual Voltage
Starting Method:Across The Line
Poles:2
Rotation:Counterclockwise Pump End
Mounting:Round
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:BallFrame Material:Rolled Steel
Shaft Type:1/2 Thread
Overall Length:12.95 in
Frame Length:8.50 in
Shaft Diameter:0.625 in
Shaft Extension:0.91 in

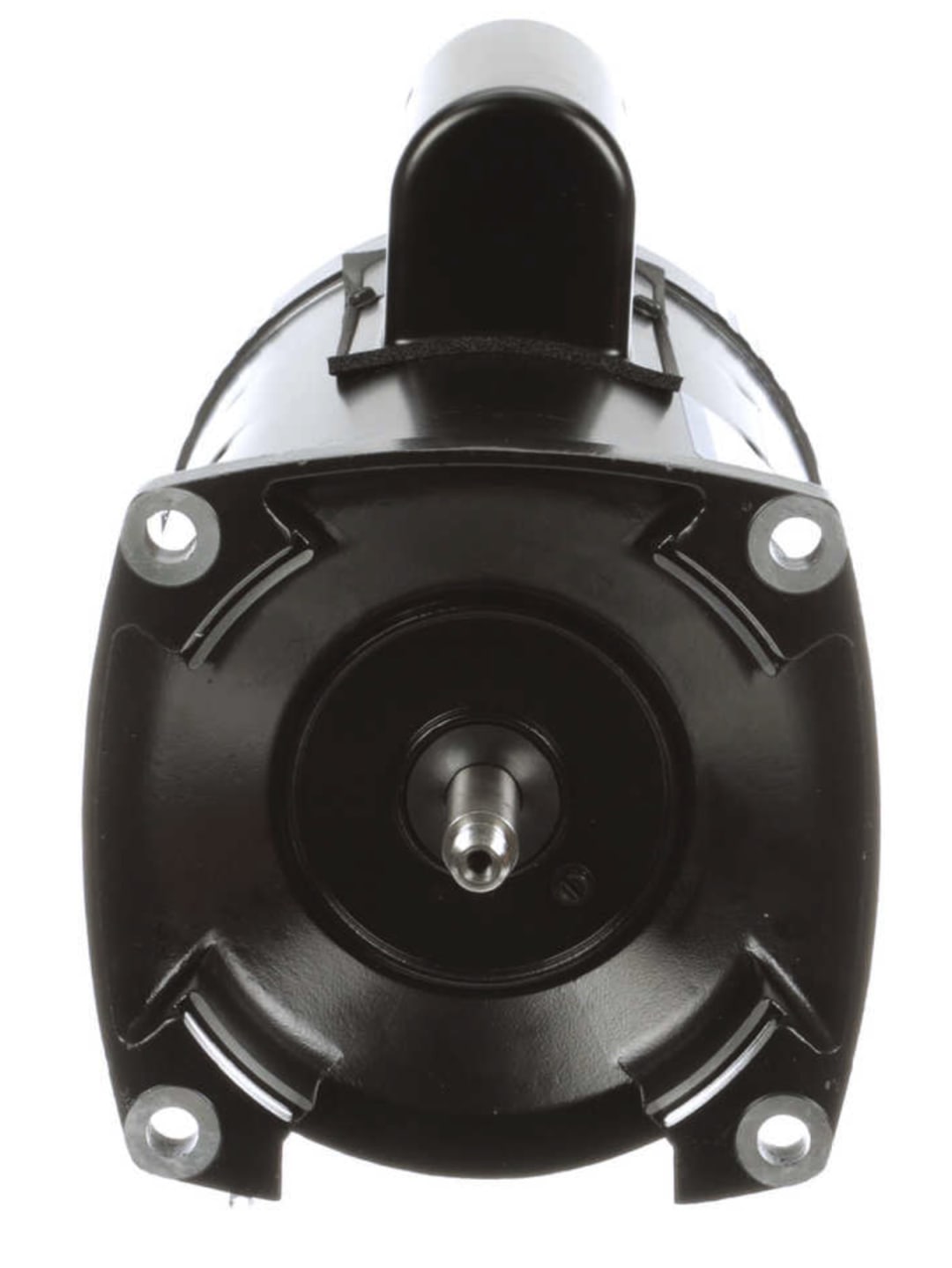

Front View
California Title 20 Compliant Options
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards:V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.
Replacement Parts Diagrams

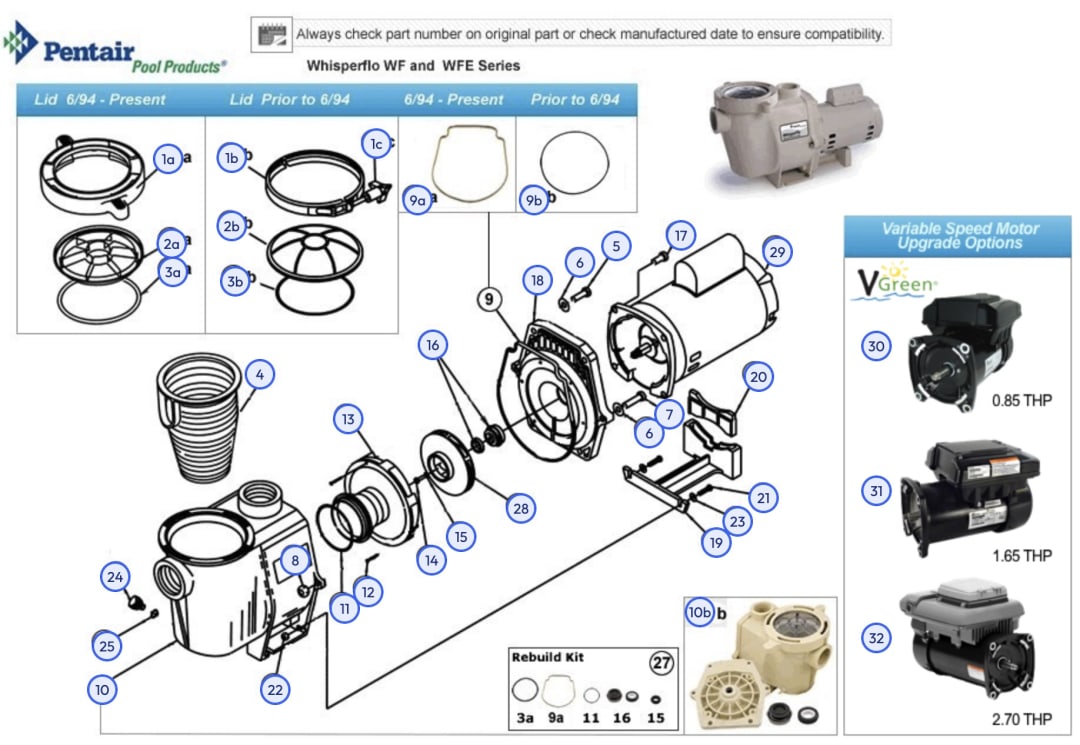

Pentair WhisperFlo Motor
We stock all the essential components for the Pentair WhisperFlo pump, making maintenance and upgrades a breeze. This motor, in particular, is a direct, high-performance replacement for the Pentair WhisperFlo pool pump, ensuring seamless compatibility and easy installation. Trust PoolZoom for all your pool pump needs and enjoy crystal-clear water with peace of mind.

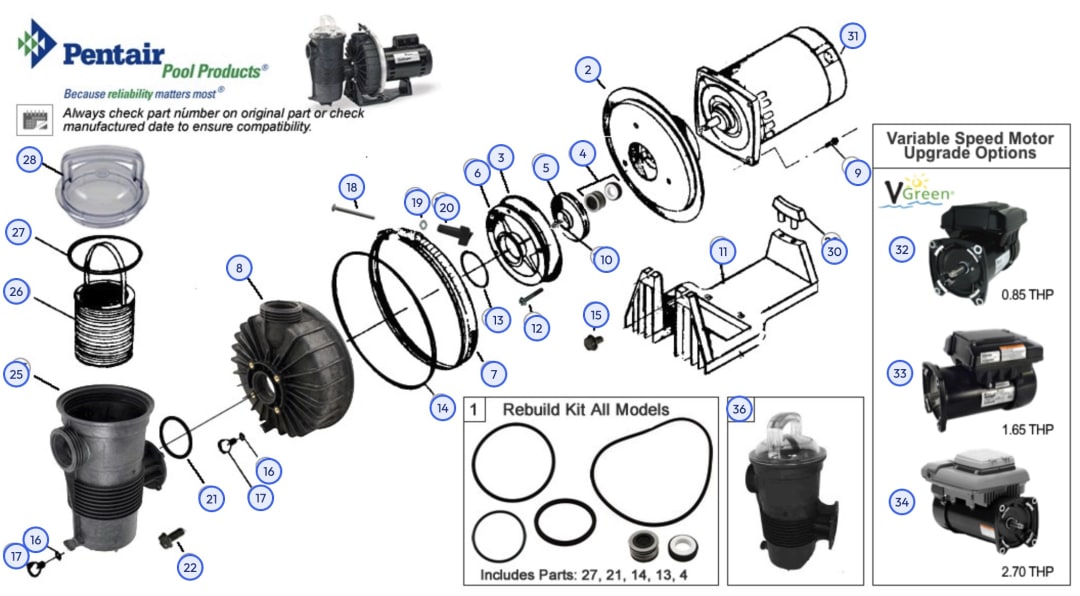

Pentair Challenger Motor
This Century 1.5 HP Pool Pump Motor also fits the Pentair Challenger pump, making it the ideal choice, and serving as a direct replacement. With our wide selection and expert guidance, maintaining your pool's performance has never been easier. Trust PoolZoom for top-notch products and exceptional service, ensuring your pool stays in perfect condition year-round.
Specs & Details
| Product Name | 1-1/2 HP, 3450 RPM, 8.0/16.0 Amps, 1.1 Service Factor, 56Y Frame, PSC, ODP Enclosure, Square Flange Pool Pump Motor |
| Manufacturer Part Number | B2854V1 |
| Sku | MGT-60-2989 |
| UPC | 786674076632 |
- B2845 Motor Outline|
