Century Square Flange Pump Motor 0.5 Hp
Century B2846
Starting at $ /mo with Affirm. Prequalify now
Century B2846 Square Flange Full-Rated Pool and Spa Pump Motor; 0.5 HP; 3450 RPM; 115/230 V; 56Y; Threaded Shaft
Used with: Pentair Challenger, Pinnacle, Jandy Stealth SHPF/SHPM series
Key Features:
Sealed Ball Bearings
50°C Ambient
Stainless Steel Shaft
Switchless
UL 1081 Design
Open Dripproof
Threaded Shaft
Permanent Split Capacitor
Note: Not California Title 20 Compliant. Cannot be sold or shipped to the state of California.
Frequently Purchased Together
Product Overview
California Title 20 Compliant Options
This Century Motor is not compliant with the California Energy Commission (CEC) regulations for pool pumps and residential replacement pool pump motors. According to Title 20, Section 1605.3(g)6 of the CEC, all pool pumps and motors must meet certain energy efficiency standards to ensure they are environmentally friendly and energy-efficient. Unfortunately, this particular motor does not meet these standards and cannot be installed in California and therefore can not be sold or installed in the state of California.
Century Motors currently manufactures six pool pump replacement motor models that conform to the CEC standards: V-Green EVO Models EVC130, EVC165, EVC225, EVQ130, EVQ165, and EVQ225. These models are designed to meet the energy efficiency standards set forth by the CEC, making them an ideal choice for pool owners in California who want to reduce their energy consumption and environmental impact.
In addition to helping the environment, complying with CEC regulations can also help pool owners save money on their energy bills. By choosing an energy-efficient pool pump and motor, pool owners can reduce their energy consumption and lower their energy costs over time.

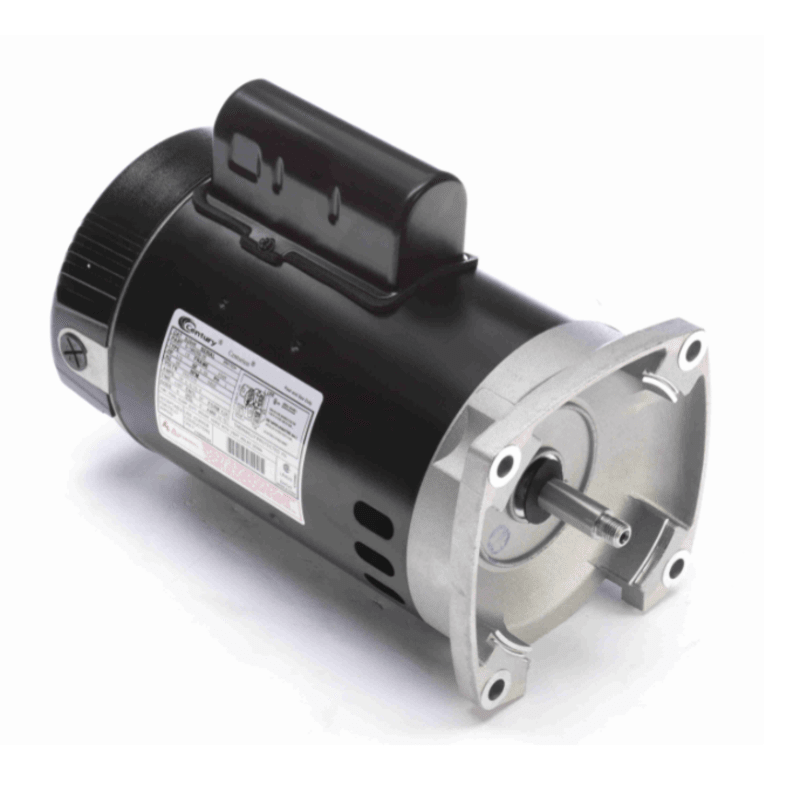

Side view

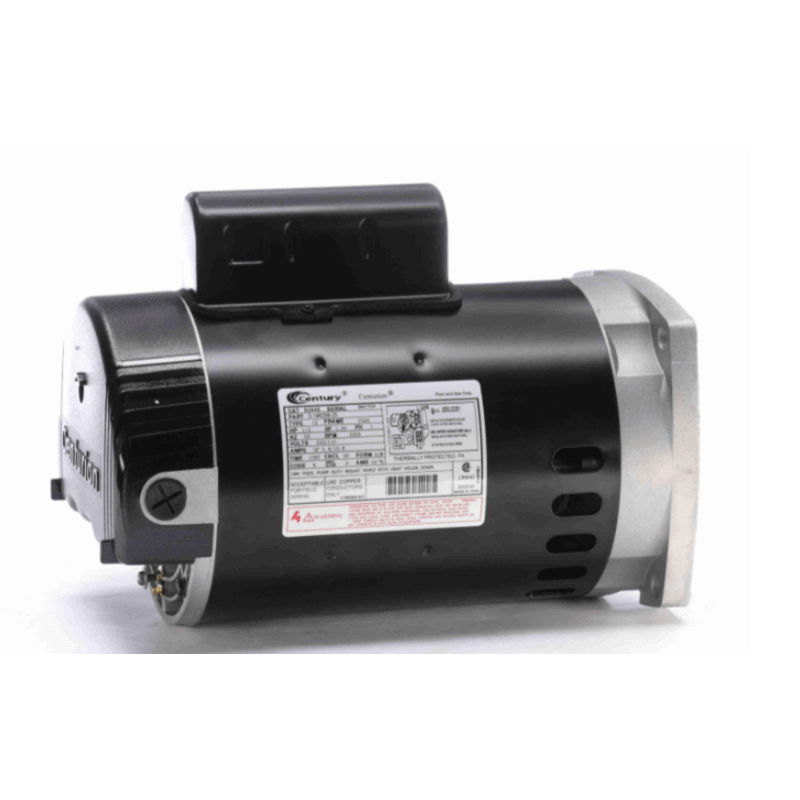

Nameplate Specs:
Phase: 1
Output HP: 1/2 Hp
Output KW: 0.37 kW
Voltage: 230/115 V
Speed: 3450 rpm
Service Factor: 1.95
Frame: P56Y
Enclosure: Drip Proof
Thermal Protection: Thermally Protected
Ambient Temperature: 50 °C
Frequency: 60 Hz
Current: SF 5.4/10.8 A
Duty: Continuous
Insulation Class: F
UL: Recognized
CSA: Y
Number of Speeds: 1
Electrical Type: Permanent Split Capacitor, Single Or Dual Voltage
Poles: 2
Rotation: Counterclockwise Pump End
Mounting: Round
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: 1/2 Threaded
Overall Length: 12.40"
Frame Length: 8.00"
Shaft Diameter: 0.625'
Shaft Extension: 0.91"

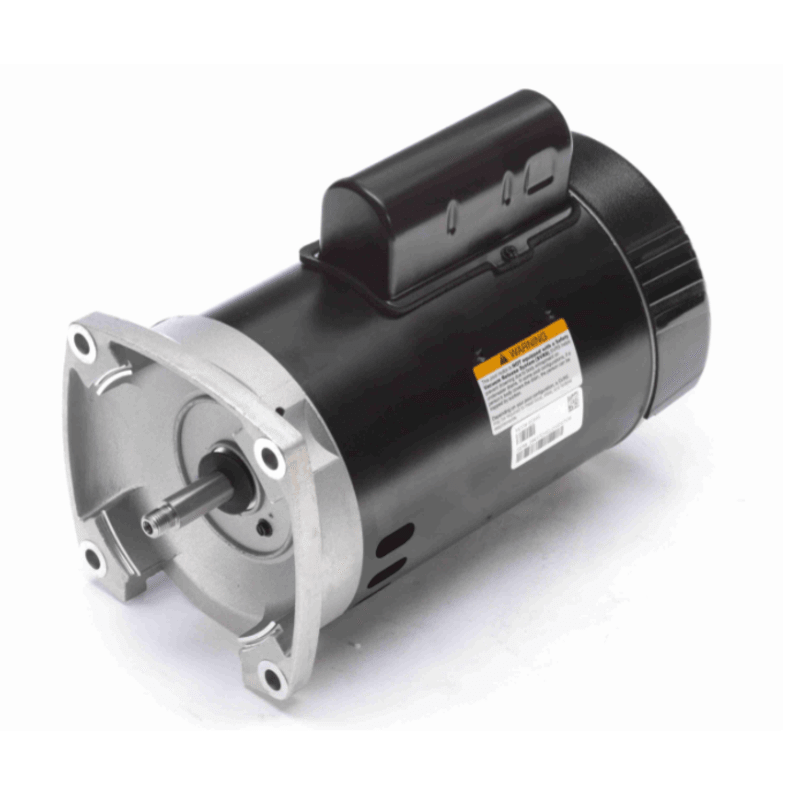

Front view
Specs & Details
| Product Name | Square Flange Pump Motor 0.5 Hp |
| Manufacturer Part Number | B2846 |
| Sku | MGT-60-2846 |
| UPC | 786674012241 |
