Product Out of Stock
Sorry, this product is temporarily out of stock.
Century 1.65 HP 230V V-Green Round Flange Variable Speed Motor
Century ECM16CU
The VGreen 165 variable speed motor by Century is a perfect way to upgrade your current pump to a energy superstar. Designed to deliver premium energy savings from 40 percent to 80 percent compared to a standard single speed motors.
The 1.65 HP VGreen Round Flange VS Motor is a perfect replacement for 1/2 to 1-1/2 HP pumps utilizing a round flange motor. Direct replacement motor for Hayward Super Pump, Super II Pump, Max-Flo Pump single or duel speed pumps.
No need to upgrade the impeller or diffuser, the motor has built in diagnostics to compensate for 1/2 to 1-1/2 HP pump internals.
Key Features:
Variable Speed Motor
Durable TEFC (Totally Enclosed Fan Cooled) Construction
ECM Technology (Electronically Commutated Motor)
40-80% Energy Savings
Integrated User Interface
Freeze Protection
Digital Inputs for Third Party Automation
Easy to Install
Quiet and Cool Operation
Product Overview
Important Info Regarding California Residents
The Century ECM16CU 1.65 HP 230V V-Green Round Flange Variable Speed Motor is not compliant with the California Energy Commission (CEC) regulations for pool pumps and residential replacement pool pump motors. This motor can not be shipped or installed in California. According to Title 20, Section 1605.3(g)6 of the CEC, all pool pumps and motors must meet certain energy efficiency standards to ensure they are environmentally friendly and energy-efficient. Unfortunately, this particular motor does not meet these standards and cannot be installed in California and therefore can not be sold or installed in the state of California. For a CEC complaint motor see the Century 1.65 THP V-Green EVO C Face Variable Speed Motor EVC165.

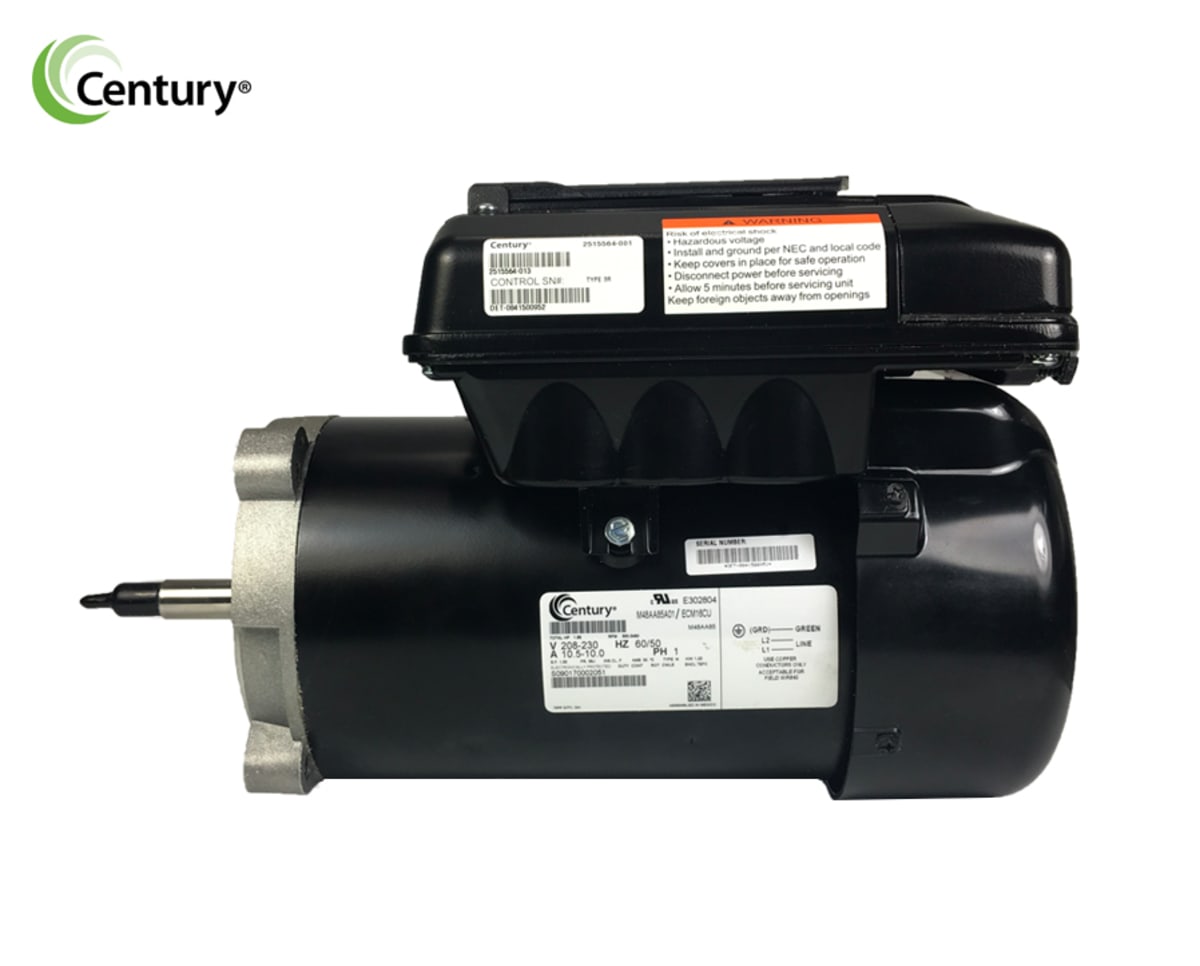

Side view
Nameplate Specs:
Phase: 1
Output HP: 1.65 Hp
Output KW: 1.2 kW
Voltage: 208-230 V
Speed: 600-3450 rpm
Service Factor: 1
Frame: 56J
Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: Automatic
Ambient Temperature: 50 °C
Frequency: 60/50 Hz
Current: 10.5-10.0 A
Duty: Continuous
Insulation Class: F
UL: Recognized
CSA: N
Technical Specs:
Electrical Type: Permanent Magnet Motor
Poles: 2
Rotation: Clockwise Lead End
Mounting: C Face
Motor Orientation: Horizontal
Drive End Bearing: BALL
Opp Drive End Bearing: BALL
Frame Material: Rolled Steel
Shaft Type: Threaded
Overall Length: 14.34"
Frame Length: 7.81"
Shaft Diameter: 0.625"
Shaft Extension: 2.55"
Front view
The Century 1.65 HP 230V V-Green Round Flange Variable Speed Motor is a high-performance pool pump motor that offers a range of features and benefits to pool owners and professionals alike.
One of the key features of this motor is its variable speed capability, which allows you to adjust the speed of the motor to meet the specific needs of your pool. This not only provides greater efficiency, but also helps to extend the lifespan of the motor.
In addition to its variable speed capability, the AO Smith 1.65 HP 230V V-Green Round Flange Motor is designed with a durable, weather-resistant construction that ensures long-lasting performance. It also features an easy-to-read LCD screen, which allows you to easily monitor the motor's performance and make adjustments as needed.
Other benefits of this motor include its energy-saving design, which can help reduce your pool's energy consumption and save you money on your energy bills. It also operates quietly, making it a great choice for those who want to enjoy a peaceful pool environment.
Overall, the AO Smith 1.65 HP 230V V-Green Round Flange Variable Speed Motor is a high-quality, reliable, and energy-efficient choice for anyone looking to upgrade their pool's motor. With its advanced features and durable construction, it is sure to provide reliable and efficient performance for years to come.
Specs & Details
| Product Name | 1.65 HP 230V V-Green Round Flange Variable Speed Motor |
| Manufacturer Part Number | ECM16CU |
| Sku | MGT-60-4037 |
| UPC | 786674069665 |
